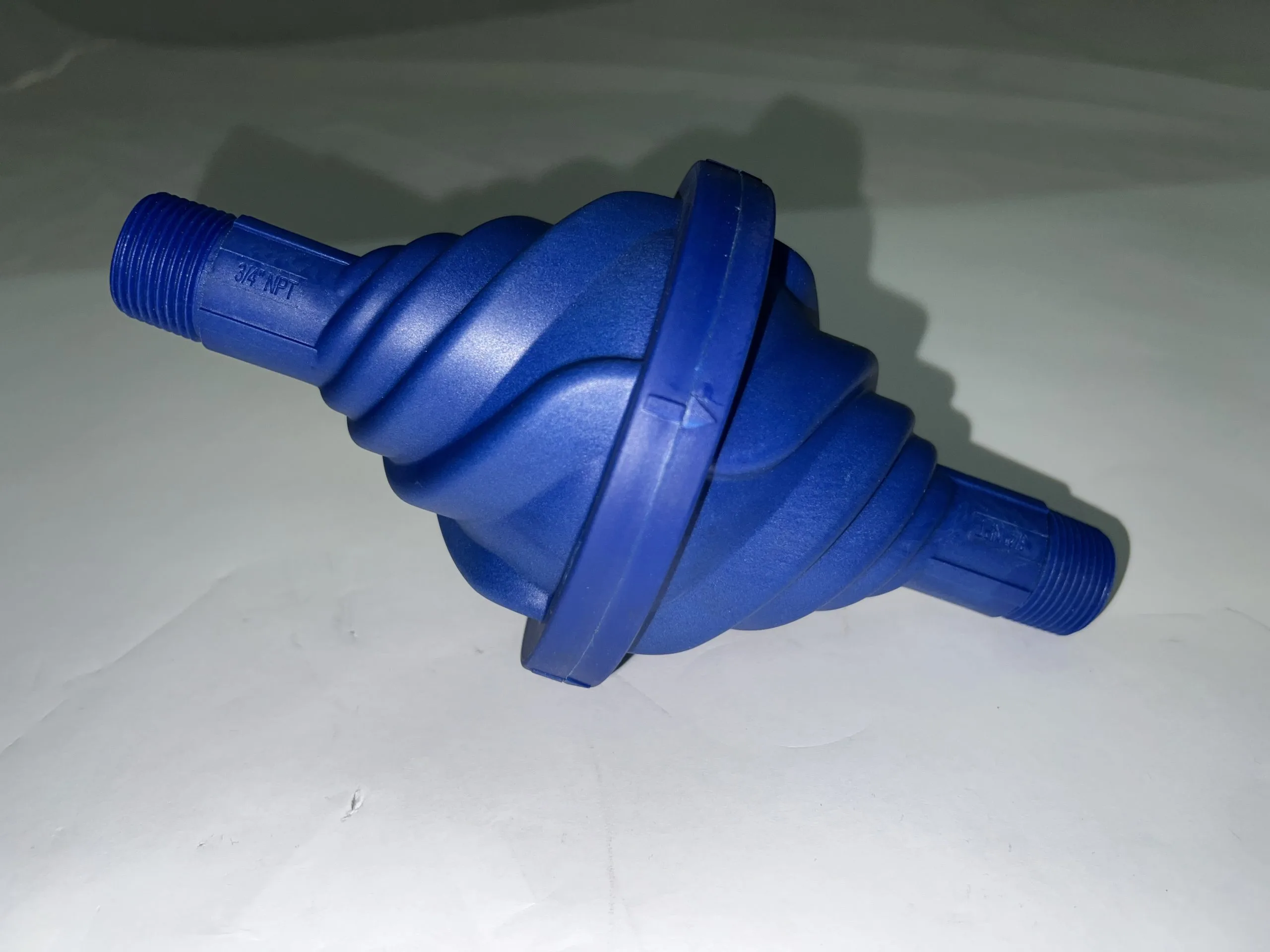

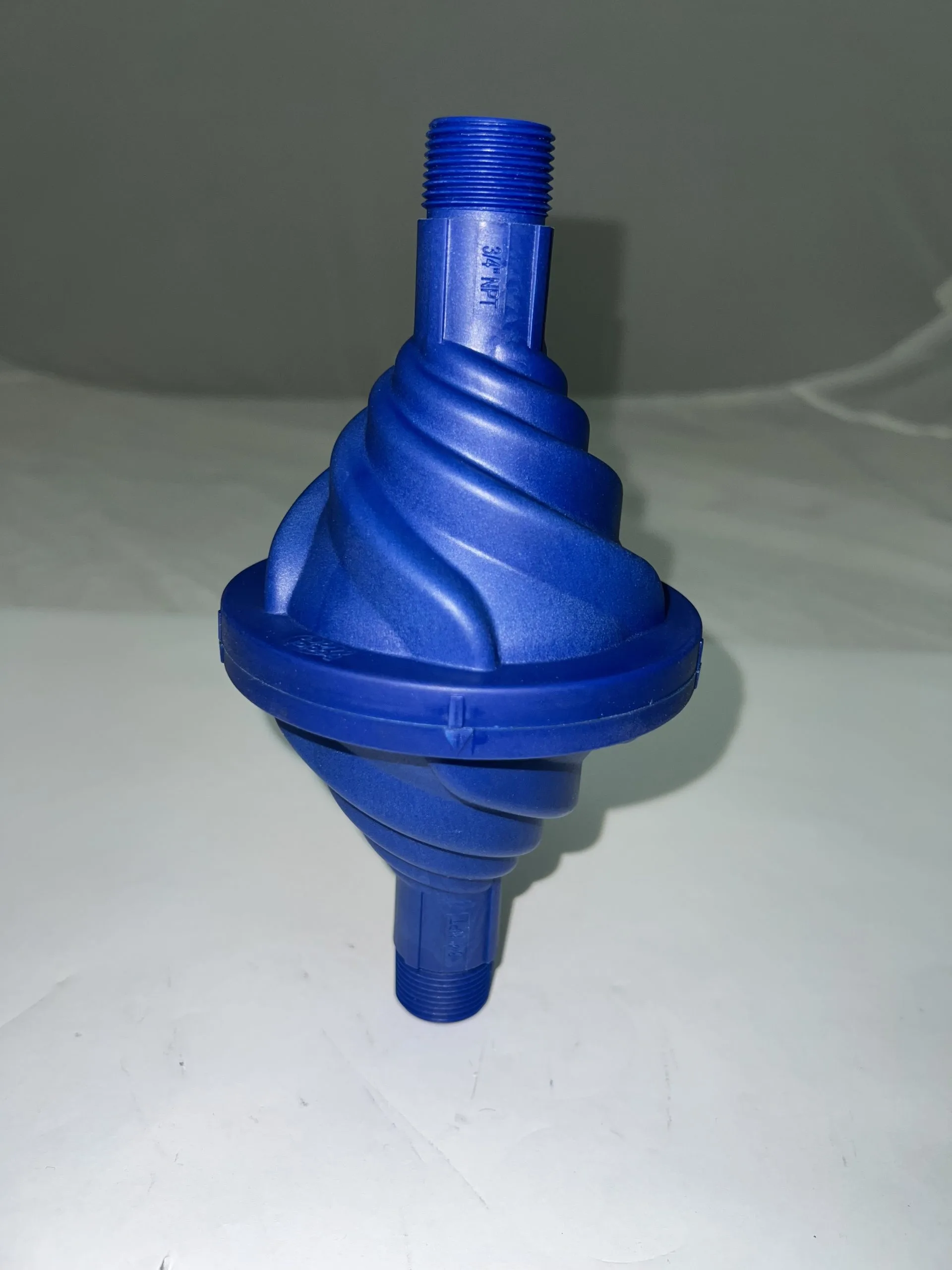

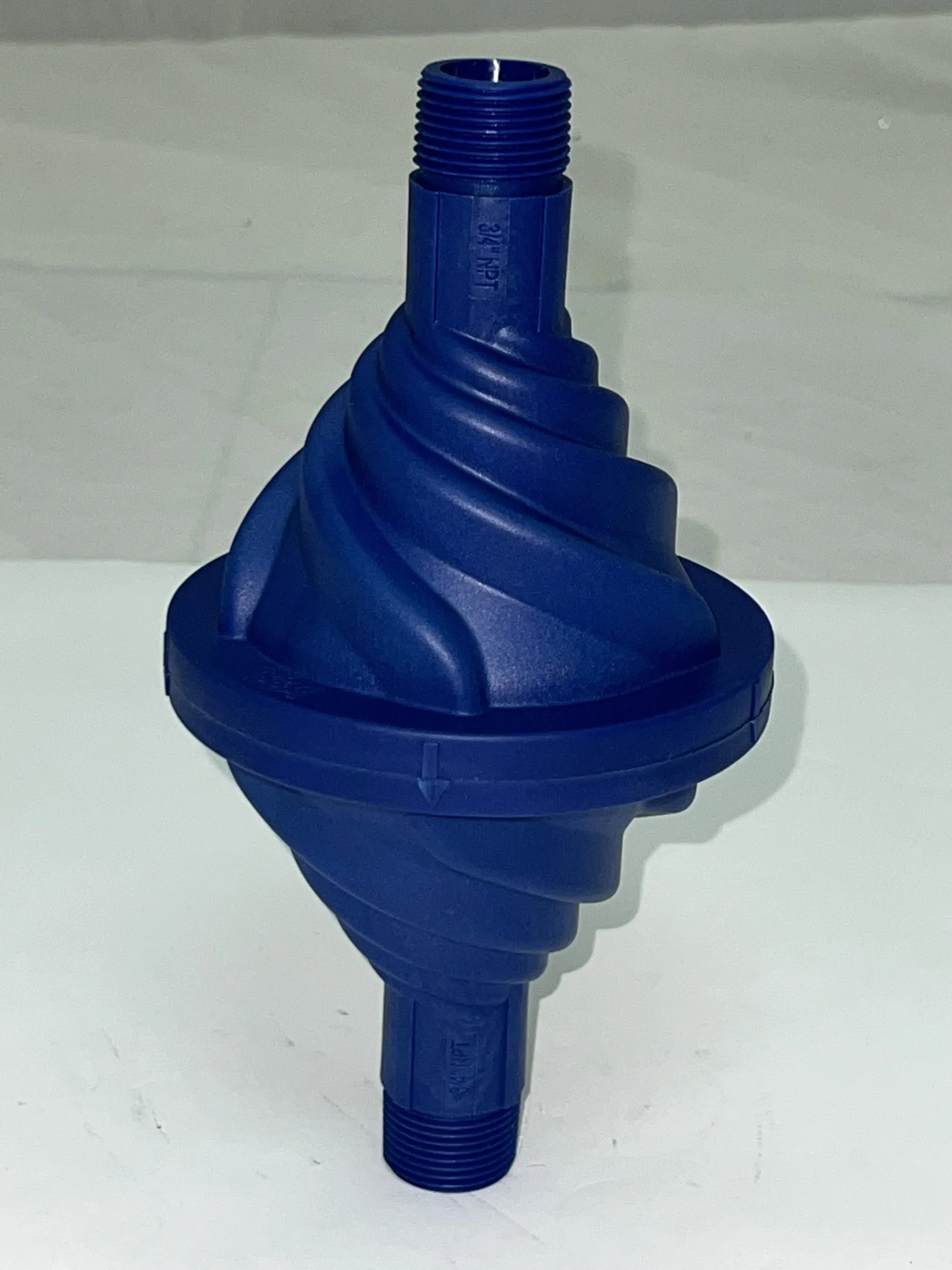

Golden Ratio Vortex Nozzle — Standalone Structuring & Super Imploder Component
The Fractal Water Vortex Nozzle is a precision-engineered golden ratio vortex device that delivers standalone water structuring benefits or serves as the vortex stage of the Super Imploder system. Manufactured from Technyl PA 66 GF30 (glass-reinforced polymer), this golden ratio nozzle spins water into a structured vortex that reduces surface tension, restructures molecular clusters, and pre-conditions water for maximum effectiveness through the downstream magnetic array.
How It Works
Water enters through the inlet end (3/4″ NPT) and is directed through the inner cone sub-assembly, where the golden ratio geometry creates a precision vortex. The spinning water exits through the outlet end and flows into the magnetic array. The vortex action restructures water at the molecular level — reducing surface tension, increasing dissolved oxygen, and preparing the water for optimal magnetic treatment in the downstream array.
Dimensional Reference
- Overall length: 8.3 in (210 mm)
- Maximum diameter: 4.21 in (107 mm)
- Thread length: 0.82 in (21 mm) each end
- Body clearance: 0.59 in (15 mm)
- Connection: 3/4″ NPT female (both ends)
- Weight: 0.53 lbs (0.24 kg)
- Material: Technyl Safe A 219WFC V30 NC (PA 66 GF30) — drinking water safe, 110°C continuous
- Finish: Pantone 11-0601 TPX Bright White
Pressure Rating & Construction
The current-generation vortex nozzle is manufactured using precision heat-welding that permanently fuses the two Technyl shell halves into a single, seamless unit. This eliminates the adhesive joints used in earlier designs and dramatically increases pressure resistance. Each nozzle is hydrostatically tested to 320 PSI (22 bar) continuous operating pressure before shipping, with burst failure occurring at 328 PSI (22.6 bar).
This 320 PSI rating exceeds the operating pressure of virtually every residential (40–80 PSI), agricultural (15–60 PSI), and commercial (60–100 PSI) water system worldwide — providing a generous safety margin for normal operation.
Water Hammer Advisory
Water hammer (hydraulic shock) creates pressure transients that can spike to 2–4x normal operating pressure when valves close suddenly. In systems with quick-close solenoid valves, pump cycling, or long straight pipe runs, these transients could approach the nozzle’s rated limit. Protect the nozzle by installing a water hammer arrestor upstream (e.g., Sioux Chief Mini-Rester, Watts 150A) and using slow-close valves at downstream fixtures. If supply pressure exceeds 80 PSI, install a pressure-reducing valve (PRV).
Fitting Guide by Pipe Type
The vortex nozzle uses 3/4″ NPT female threads on both ends. Choose the right fitting for your pipe material:
- Copper: SharkBite 3/4″ push-to-connect × NPT or Viega ProPress — no torch near the nozzle
- PEX: SharkBite 3/4″ PEX push-to-connect or brass PEX crimp fitting
- CPVC: SharkBite push-to-connect or CPVC socket × NPT adapter with solvent cement
- Galvanized steel: 3/4″ NPT nipple — threads directly, no adapter needed
- PVC (Sch 40): 3/4″ PVC socket × NPT female adapter with primer and cement
- Poly/HDPE: 3/4″ barb × NPT male adapter with stainless hose clamps
- Garden hose: 3/4″ NPT male × GHT female brass adapter
Always apply 3–4 wraps of PTFE (Teflon) tape to male NPT threads before connecting. Do not use pipe dope compounds that may contain petroleum solvents.
When to Purchase
- Standalone vortex treatment: Install on any 3/4″ water line for pure vortex structuring without a magnetic array — ideal for garden, greenhouse, or drinking water
- Second system build: Pair with an existing or new magnetic array to create a complete Super Imploder for a second location
- Replacement: If the existing nozzle has sustained physical damage, thread wear, or impact cracks
- System upgrade: Upgrading from an older nozzle design to the current heat-welded golden ratio geometry
Installation
Thread the vortex nozzle directly onto the inlet side of the Super Imploder magnetic array — both use 3/4″ NPT threads. Apply PTFE (Teflon) tape to all threaded connections. Water flows through the vortex nozzle first, then through the magnetic array.
- Direct connection to magnetic array: Vortex nozzle (3/4″ NPT) → 3/4″ NPT-to-NPT adapter → magnetic array (3/4″ NPT). Parts: Vortex nozzle + 3/4″ NPT female-to-NPT male adapter + PTFE tape.
- Hose connection: Garden hose → GHT-to-NPT adapter → vortex nozzle → magnetic array. Parts: Vortex nozzle + 3/4″ NPT-to-GHT adapter + PTFE tape.
- Inline plumbing: Supply line → vortex nozzle → magnetic array → downstream line. All 3/4″ NPT throughout. Parts: Vortex nozzle + PTFE tape + NPT couplings as needed.
Compatibility

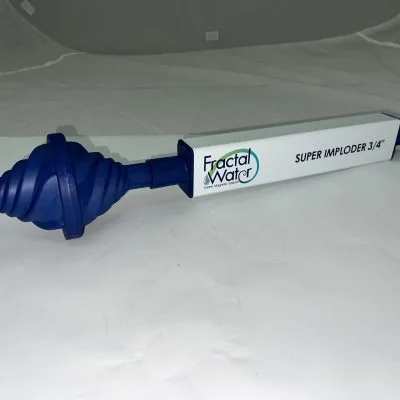

This vortex nozzle is designed for the Fractal Water Super Imploder 3/4″ system. It threads directly onto the Super Imploder magnetic array — both use matching 3/4″ NPT threads. The Super Imploder can be installed on a main water line or in any inline application. Not compatible with the Ultra Imploder (which uses an integrated 1″ stainless steel nozzle).
Mechanical Stress Guidelines
The vortex nozzle is heat-welded from two precision-molded Technyl halves, creating a fused joint rated to 320 PSI hydrostatic pressure. While the weld seam withstands internal water pressure with a generous safety margin, it is a potential stress concentration point under external mechanical loads — such as the weight of unsupported pipe or the magnetic array pulling on the nozzle threads.
Installation Best Practices
- Always support both sides. Secure the pipe on each side of the nozzle with hangers, straps, or brackets within 12 inches of each NPT connection. The nozzle must not bear the cantilevered weight of the magnetic array (6.60 lbs) or downstream piping.
- Use a support cradle on the nozzle body. For horizontal installations, place a pipe strap or padded U-bolt under the widest point of the nozzle (4.21″ / 107mm diameter) to distribute load away from the weld seam.
- Use two wrenches for threading. Hold the nozzle steady with one wrench while turning the fitting with the other. Never grip and twist the nozzle shell — this applies torque directly across the weld line.
- Vertical installation is lowest stress. When mounted vertically, the weld seam experiences only hydrostatic pressure with no bending load from gravity. This is the recommended orientation for permanent main line installations.
- Allow thermal expansion clearance. On hot water lines, leave 1/4″ axial play in pipe supports. Rigid clamping on both sides during thermal cycling can create compressive stress on the Technyl housing.
Key principle: The nozzle is engineered to resist water pressure (320 PSI rated). The installer’s job is to ensure it doesn’t also carry mechanical loads it wasn’t designed for — unsupported weight, torsion, or pipe bending forces. Proper support = decades of reliable service.
Material: Technyl Safe A 219WFC V30 NC
The vortex nozzle is injection-molded from Technyl Safe A 219WFC V30 NC — a 30% glass-fiber reinforced polyamide 66 (PA 66 GF30) engineered specifically for drinking water and food contact applications. This material offers exceptional hydrolysis resistance and chlorine resistance compared to standard PA66, making it suitable for both cold and hot water systems including chlorinated municipal supplies.
- Tensile strength: 100 MPa (dry) — high mechanical strength under static loads
- Flexural strength: 135 MPa — resists bending and deformation
- Flexural modulus: 4,700 MPa — exceptional rigidity
- Continuous service temperature: 110°C (230°F) — suitable for hot water lines
- Short-term service temperature: 180°C (356°F)
- Water absorption: 0.39–0.74% — minimal dimensional change when wet
- Glass fiber reinforcement: 30% — increases strength, rigidity, and creep resistance
- Drinking water safe: Technyl Safe grade — designed for potable water contact
- Chlorine resistant: Enhanced formulation for chlorinated water systems
- Expected material lifespan: 20+ years in continuous water contact service
Installation by Application
The vortex nozzle threads directly onto the Super Imploder magnetic array — both use 3/4″ NPT. Below are application-specific installation notes. Always support both the nozzle and magnetic array independently (see Mechanical Stress Guidelines above).
- Main water line (whole-home): Install on the 3/4″ main supply after the shutoff valve and PRV. Use SharkBite push-to-connect fittings for copper or PEX. Support with pipe hangers within 12″ of each connection. Typical pressure: 40–80 PSI. Parts: Vortex nozzle + magnetic array + SharkBite or NPT couplings + pipe hangers + PTFE tape.
- Water heater protection: Install on the cold water inlet to the water heater. Parts: Vortex nozzle + magnetic array + 3/4″ NPT nipples + PTFE tape.
- Garden irrigation: Install between the outdoor spigot and garden hose. Parts: Vortex nozzle + magnetic array + NPT-to-GHT adapters + PTFE tape.
- Pool or spa: Install on the return line after the pump. Parts: Vortex nozzle + magnetic array + 3/4″ NPT unions + PTFE tape.
- Recirculation loop: Install between reservoir and pump. Each pass increases treatment potency. Typical well pump pressure: 30–60 PSI. Parts: Vortex nozzle + magnetic array + barb-to-NPT adapters + tubing + hose clamps.
- Irrigation manifold: Install at the manifold inlet. PVC mainline: use 3/4″ PVC socket×NPT adapter with primer and cement. Poly pipe: use barb×NPT adapter with stainless clamps. Parts: Vortex nozzle + magnetic array + PVC or poly adapters + PTFE tape.
- Greenhouse / hydroponic: Install inline on the nutrient solution line. Parts: Vortex nozzle + magnetic array + barb fittings + hose clamps.
- HVAC / cooling tower makeup: Install on the 3/4″ makeup water line. Use Viega ProPress for copper systems (no torch near nozzle). Typical pressure: 40–80 PSI. Parts: Vortex nozzle + magnetic array + ProPress or NPT fittings + PTFE tape.
- Commercial kitchen / ice machine: Install on the supply line. Parts: Vortex nozzle + magnetic array + NPT couplings + PTFE tape.
- Sprinkler system main: Install on the 3/4″ supply line feeding zone valves. Typical pressure: 30–50 PSI at heads. PVC mainline: use PVC socket×NPT adapter. Parts: Vortex nozzle + magnetic array + PVC adapters + PTFE tape.
- HVAC / cooling tower makeup: Install on the 3/4″ makeup water line. Use Viega ProPress for copper (no torch near nozzle). Typical pressure: 40–80 PSI. Parts: Vortex nozzle + magnetic array + ProPress or NPT fittings + PTFE tape.
- Commercial kitchen / ice machine: Install on the supply line feeding dishwashers, steamers, or ice machines. Parts: Vortex nozzle + magnetic array + NPT couplings + PTFE tape.
- Commercial laundry: Install on the supply line to washing machines. Parts: Vortex nozzle + magnetic array + NPT couplings + PTFE tape.
- Pool, spa & water features: Install on the return line after the pump. Parts: Vortex nozzle + magnetic array + NPT unions + PTFE tape.
- Cooling towers & chillers: Install on the 3/4″ makeup water line. Industrial pressures 60–150 PSI — well within 320 PSI rating. Use stainless NPT unions for chemical environments. Parts: Vortex nozzle + magnetic array + stainless NPT unions + PTFE tape.
- Food & beverage manufacturing: Install on process water lines. Technyl Safe nozzle is drinking water and food contact safe. Parts: Vortex nozzle + magnetic array + stainless NPT couplings + PTFE tape.
- Wastewater pre-treatment: Install on influent lines. Parts: Vortex nozzle + magnetic array + PVC or stainless adapters + PTFE tape.
- Drinking water / shower: Install on the supply line for structured water at the tap. SharkBite push-to-connect for easy DIY installation on copper or PEX. Parts: Vortex nozzle + magnetic array + SharkBite fittings + PTFE tape.

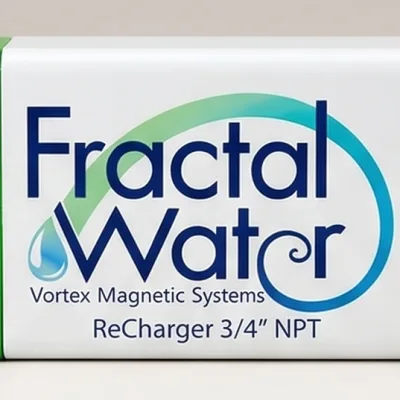

Boost with a ReCharger
For longer pipe runs between the Super Imploder and the point of use, add a Fractal Water ReCharger downstream to reinforce the magnetic treatment exactly where it matters most. The Super Imploder’s vortex nozzle provides the structuring stage, the magnetic array provides the primary magnetic conditioning, and the ReCharger extends that magnetic effect through longer distances — ensuring full-strength treatment arrives at the fixture, emitter, or appliance.
- Residential: Super Imploder on the main line + ReCharger at the water heater inlet or kitchen tap
- Agriculture: Super Imploder at the pump + ReCharger at distant irrigation zones or greenhouse benches
- Commercial: Super Imploder on the supply + ReCharger at individual equipment (ice machines, dishwashers, cooling tower makeup)
The ReCharger uses 3/4″ NPT female threads on both ends — matching the Super Imploder’s connections — so it installs inline with the same fittings. See the ReCharger product page for detailed specifications and application-specific installation guides.
Frequently Asked Questions
Can I use the Vortex Nozzle by itself?
Yes. The vortex nozzle delivers standalone water structuring benefits — reduced surface tension, increased dissolved oxygen, and improved bioavailability — on any 3/4″ NPT water line. For the full dual-stage treatment, pair it with the Super Imploder magnetic array.
How does it connect to the Super Imploder?
Both use matching 3/4″ NPT threads — they thread together directly with no adapters. Apply PTFE tape and use two wrenches (one to hold, one to turn).
What pressure can it handle?
The heat-welded construction is rated to 320 PSI (22 bar) continuous, with burst tested at 328 PSI. This exceeds all residential (40–80 PSI), agricultural (15–60 PSI), and commercial (60–100 PSI) pressures. See the Water Hammer Advisory for transient pressure precautions.
How long does it last?
Technyl Safe PA 66 GF30 is rated for 20+ years in continuous water contact. With proper support and installation, the nozzle will outlast most plumbing systems.
Is it safe for drinking water?
Yes. Technyl Safe A 219WFC V30 NC is specifically engineered for drinking water and food contact applications, with enhanced chlorine and hydrolysis resistance.
Can I use it on hot water lines?
Yes. Continuous service rated to 110°C (230°F). Suitable for hot water heater inlets, shower feeds, and commercial hot water applications.

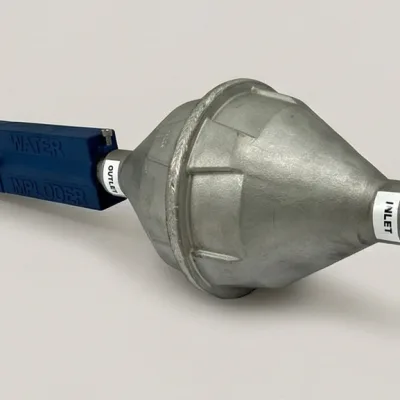

Is it compatible with the Ultra Imploder?
No. The Ultra Imploder uses an integrated 1″ stainless steel vortex nozzle — it is a one-piece design. This 3/4″ Technyl nozzle is designed for the Super Imploder system.
Questions? Call us toll-free at 1 (888) 897-6968.
