Fractal Water Vortex Magnetic Systems Ultra Imploder
$2,250.00
The Fractal Water Ultra Imploder is our flagship vortex magnetic water treatment system — built entirely from 316 stainless steel with 8 high-power N52 neodymium magnets and a one-piece stainless vortex nozzle. At 33.94 lbs of precision-engineered stainless steel, this is the system designed for permanent main line installation and built to last a lifetime. U.S. Patent Pending.
1″ NPT connections — installs directly on residential, commercial, or industrial main water lines. Included pivoting mounting bracket secures to any surface.
Extend your system: Add a ReCharger downstream on 3/4″ branch lines for boosted magnetic treatment at the point of use.
Key specs: 33.94 lbs | 32.3 in (821 mm) long | 1″ NPT | 316 stainless steel | 8x N52 neodymium magnets | 300+ PSI rated | Pivoting mount bracket included | Zero maintenance | 10-year warranty | 30+ year lifespan | U.S. Patent Pending
Premium Vortex Magnetic Water Treatment — 316 Stainless Steel
The Fractal Water Ultra Imploder is our flagship water treatment system — combining a one-piece 316 stainless steel vortex nozzle with a magnetic array housing 8 high-power N52 neodymium magnets. Unlike the Super Imploder’s Technyl nozzle, the Ultra Imploder’s vortex nozzle is machined from solid stainless steel, making it virtually indestructible under any residential, commercial, or industrial pressure. At 33.94 lbs of precision-engineered steel, this is the system designed for permanent main line installation and built to outlast the building it’s installed in.
How It Works
Water enters through the 1″ NPT connection and passes through the stainless steel vortex nozzle, where precision golden ratio geometry creates a powerful structured vortex. The vortex-treated water then flows through the 18″ stainless steel pipe section, passing through a powerful magnetic array containing 8 N52 neodymium magnets arranged with north poles facing. In a 2008 laboratory study (Tai, Wu and Chang, Chemical Engineering Science), calcium carbonate formed mostly as aragonite after the solution had been magnetized for 48 hours, and calcite grew more slowly in a magnetic field.
What the Ultra Imploder Does
Improves seed germination rate and uniformity
Softens water without salt, chemicals, or electricity
Extends appliance lifespan by preventing mineral deposits on heating elements
Zero maintenance — no filters, no consumables, no moving parts

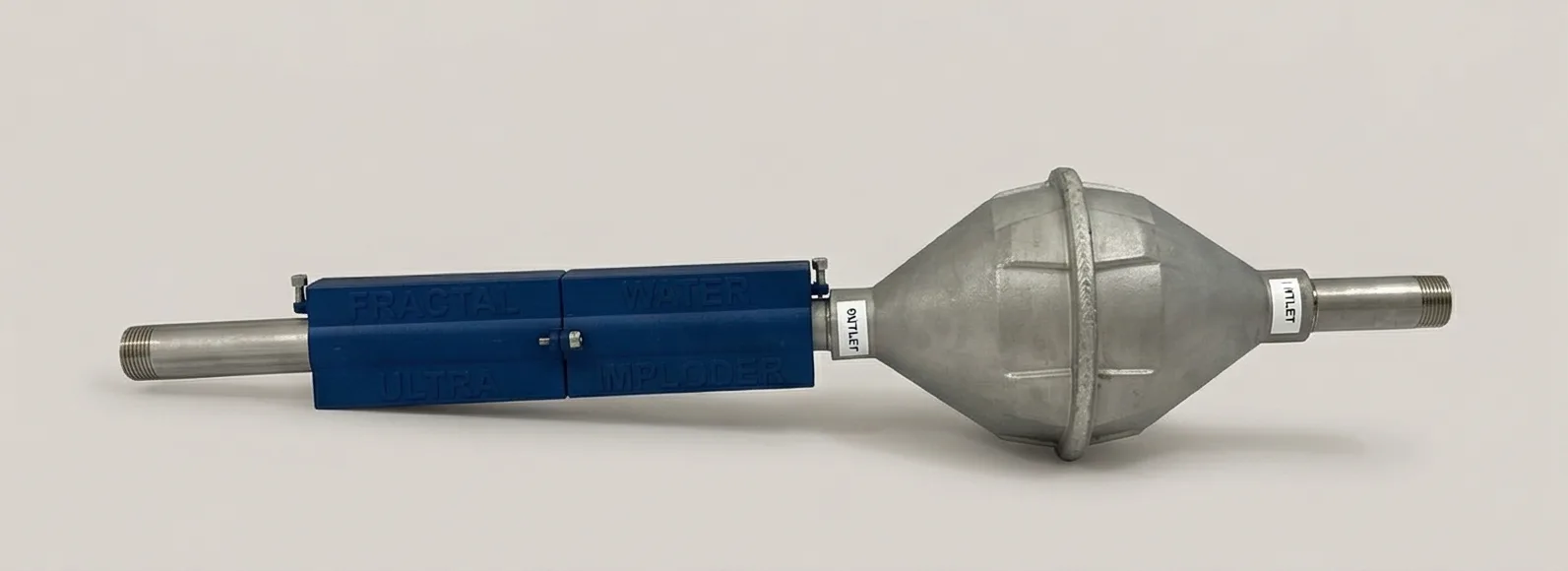

Dimensional Reference
Overall length: 32.3 in (821 mm)
Vortex nozzle diameter: 7.0 in (178 mm)
Connection: 1″ NPT (both ends)
Total weight: 33.94 lbs (15.4 kg)
Flow pipe: 1″ NPT x 18″ stainless steel
Construction: 316 stainless steel throughout
Magnets: 8x N52 neodymium (13x25x74 mm each)
Magnetic Array: Heavy gauge steel, Zylan-coated (5.48 lb)

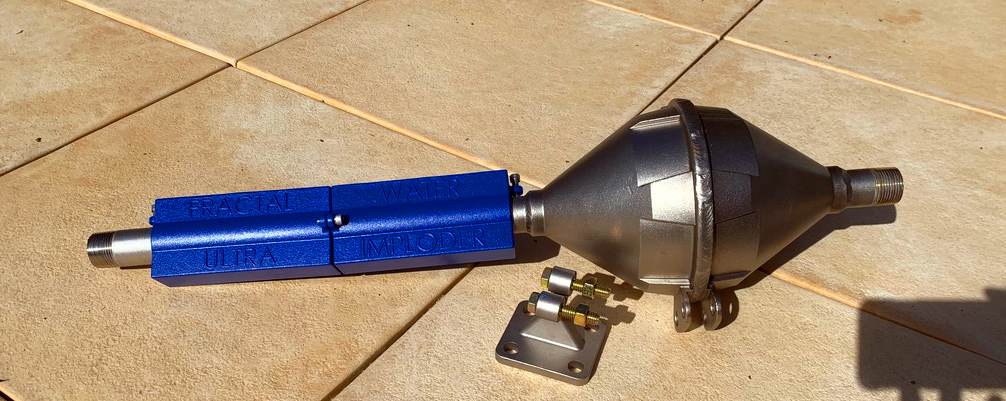

Mounting: Pivoting bracket with SS socket head screws
Pressure Rating & Construction
The Ultra Imploder is constructed entirely from 316 stainless steel — the same grade used in marine, pharmaceutical, and food processing applications. With no polymer components in the pressure path, the Ultra Imploder handles any pressure a residential, commercial, or industrial water system can deliver. The all-steel construction eliminates any concern about weld seam stress, mechanical support requirements, or water hammer damage that must be managed with polymer-based systems.
Application
Typical Pressure
Ultra Imploder
US municipal residential
40–80 PSI
No concern
European municipal
43–87 PSI (3–6 bar)
No concern
Australian municipal
29–100 PSI (200–700 kPa)
No concern
Well water with pressure tank
30–60 PSI
No concern
Commercial buildings
60–100 PSI
No concern
HVAC / cooling tower makeup
40–80 PSI
No concern
Industrial process water
60–150 PSI
No concern
Fire suppression (non-potable)
100–175 PSI
Consult local codes
Installation by Application
The Ultra Imploder uses 1″ NPT connections on both ends. Water enters the vortex nozzle end and exits the magnetic array end. The included pivoting mounting bracket secures the unit to any wall, floor, or ceiling surface. Allow 32.3″ (821 mm) clearance along the pipe run.
Whole-home main line (recommended): Install on the 1″ main water supply after the shutoff valve and PRV. Every tap, appliance, and fixture in the home receives treated water. Use SharkBite 1″ push-to-connect for copper or PEX, or standard 1″ NPT threaded couplings. Secure with the included mounting bracket. Parts: Ultra Imploder + SharkBite 1″ or NPT couplings + PTFE tape.
Water heater protection: Install on the cold water inlet to protect the water heater from scale. Especially effective on tankless units where scale reduces efficiency rapidly. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Pool & spa: Install on the return line after the pump, before the heater or salt cell. Reduces chemical use and prevents scale on heat exchangers. Parts: Ultra Imploder + 1″ NPT unions + PTFE tape.
Recirculation loop: Install between reservoir and pump. Run water through the Ultra Imploder and back into the reservoir — each pass increases potency. Parts: Ultra Imploder + 1″ barb-to-NPT adapters + tubing + hose clamps.
Irrigation main line: Install at the head of the irrigation system for treated water to every zone. Parts: Ultra Imploder + 1″ NPT couplings or PVC adapters + PTFE tape.
Greenhouse supply: Install on the main supply feeding all greenhouse benches, misting systems, and hydroponic loops. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Well water system: Install on the 1″ outlet from the pressure tank for whole-farm treatment. Parts: Ultra Imploder + 1″ NPT nipple + PTFE tape.
HVAC / cooling tower: Install on the 1″ makeup water feed. Prevents scale on fill media, heat exchangers, and distribution nozzles. Use Viega ProPress 1″ fittings for copper or stainless NPT unions. Parts: Ultra Imploder + 1″ ProPress or NPT fittings + PTFE tape.
Commercial kitchen: Install on the main hot water supply feeding dishwashers, steamers, combi ovens, and ice machines. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Commercial laundry: Install on the supply line for softer fabrics, less detergent, and reduced equipment scaling. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Pools, spas & water features: Install on the return line after circulation pump. Parts: Ultra Imploder + 1″ NPT unions + PTFE tape.
Facilities management: Single point-of-entry installation treats the entire building — reducing maintenance across all water-using systems simultaneously. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Wastewater pre-treatment: Install on influent lines to reduce fouling, improve flow, and reduce chemical treatment requirements. Parts: Ultra Imploder + 1″ stainless or PVC adapters + PTFE tape.
Mining & extraction: Install on process water lines to reduce scale in piping, pumps, and separation equipment. 316 SS resists corrosive environments. Parts: Ultra Imploder + 1″ 316 SS NPT unions + PTFE tape.
Pulp & paper: Install on process water supply to reduce scale, fouling, and chemical treatment costs across pulping, bleaching, and pressing stages. Parts: Ultra Imploder + 1″ stainless NPT couplings + PTFE tape.
Irrigation main line: Install on the 1″ supply feeding the irrigation controller and zone valves. Treats all downstream zones from a single installation point. Parts: Ultra Imploder + 1″ PVC or NPT couplings + PTFE tape.
Golf courses & stadiums: Install at pump stations or satellite stations for targeted treatment on priority greens, fairways, or fields. Parts: Ultra Imploder + 1″ NPT couplings + PTFE tape.
Cooking & food prep: Improved water quality directly improves the flavor and quality of coffee, tea, pasta, soups, and all water-based cooking.
Installation Guidelines
The Ultra Imploder weighs 33.94 lbs — significantly heavier than the Super Imploder. The all-steel construction eliminates polymer stress concerns, but the weight itself requires proper mounting:

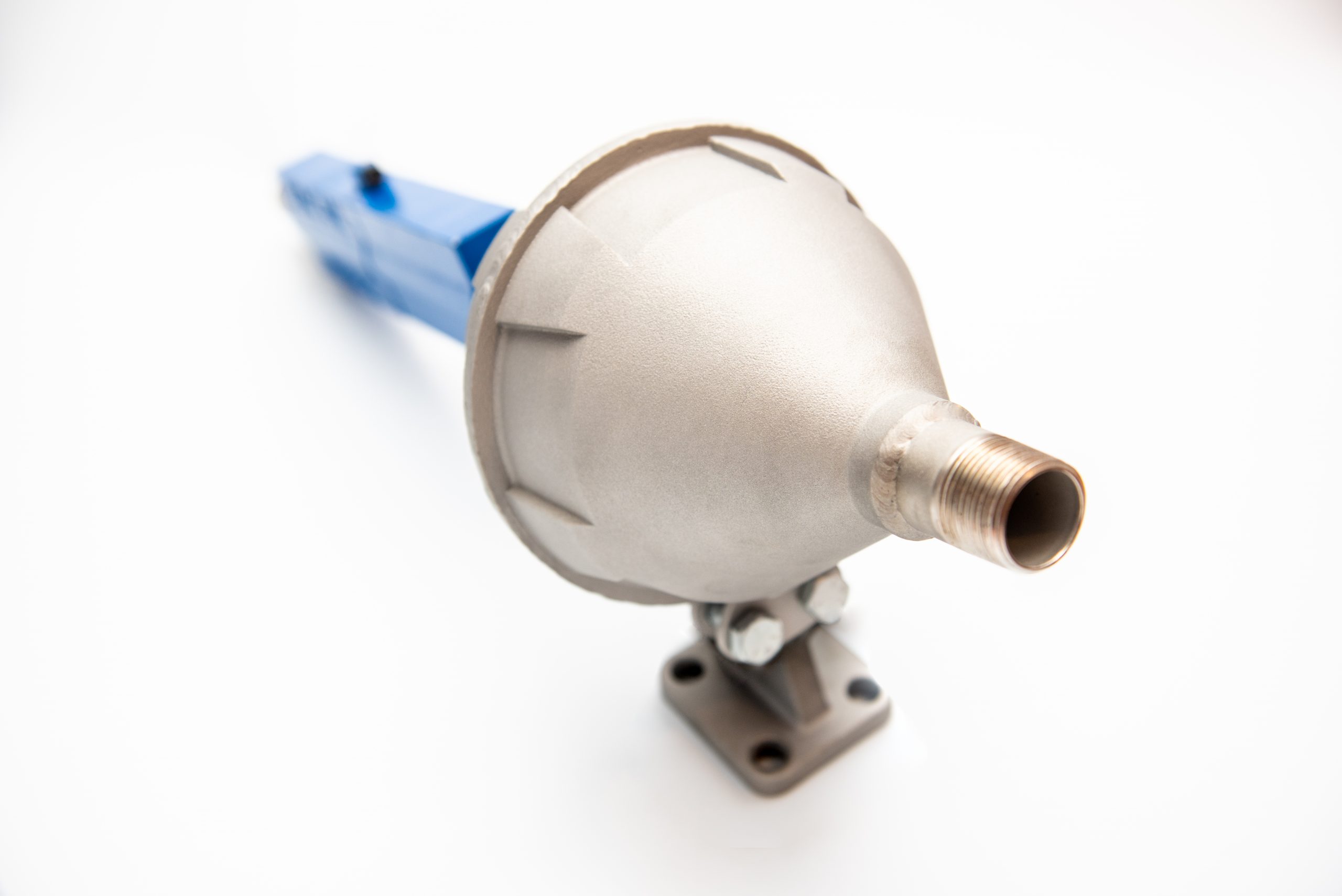

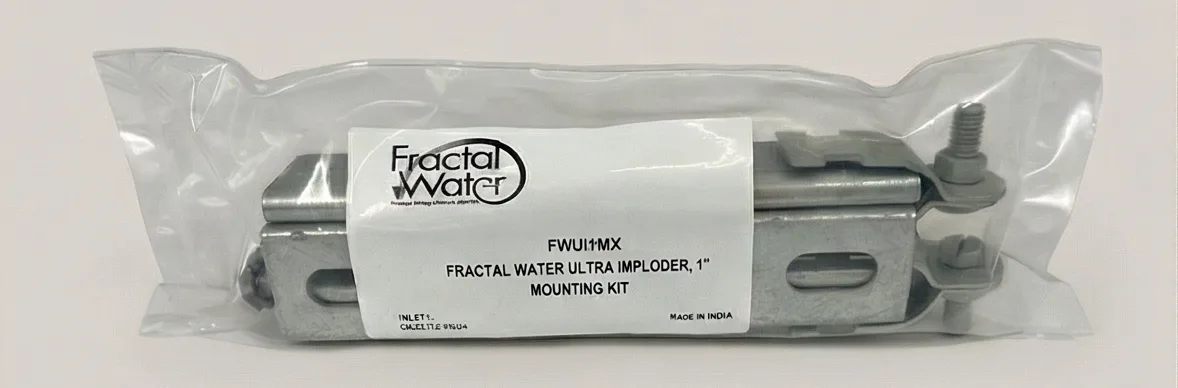

Always use the included mounting bracket. The pivoting bracket must be secured to a wall, floor joist, or structural surface with appropriate fasteners before connecting piping. Never allow the full 33.94 lbs to hang from pipe threads alone.
Secure both ends. Support the pipe on both the inlet (nozzle) and outlet (magnetic array) sides with pipe hangers rated for 1″ steel pipe. The mounting bracket handles the body weight; pipe hangers prevent bending at the threaded connections.
Use unions for service access. Install a 1″ NPT stainless steel union on at least one side so the unit can be removed for inspection or relocation without cutting pipe.
Do not use a torch near the magnetic sleeves. When soldering or brazing nearby copper fittings, use Viega ProPress or SharkBite push-to-connect instead. Excessive heat can degrade the Zylan coating on the magnetic housing and weaken the neodymium magnets.
Any orientation works. Horizontal, vertical, or angled — the mounting bracket pivots to accommodate all positions. Ensure the bracket is secured before connecting piping.

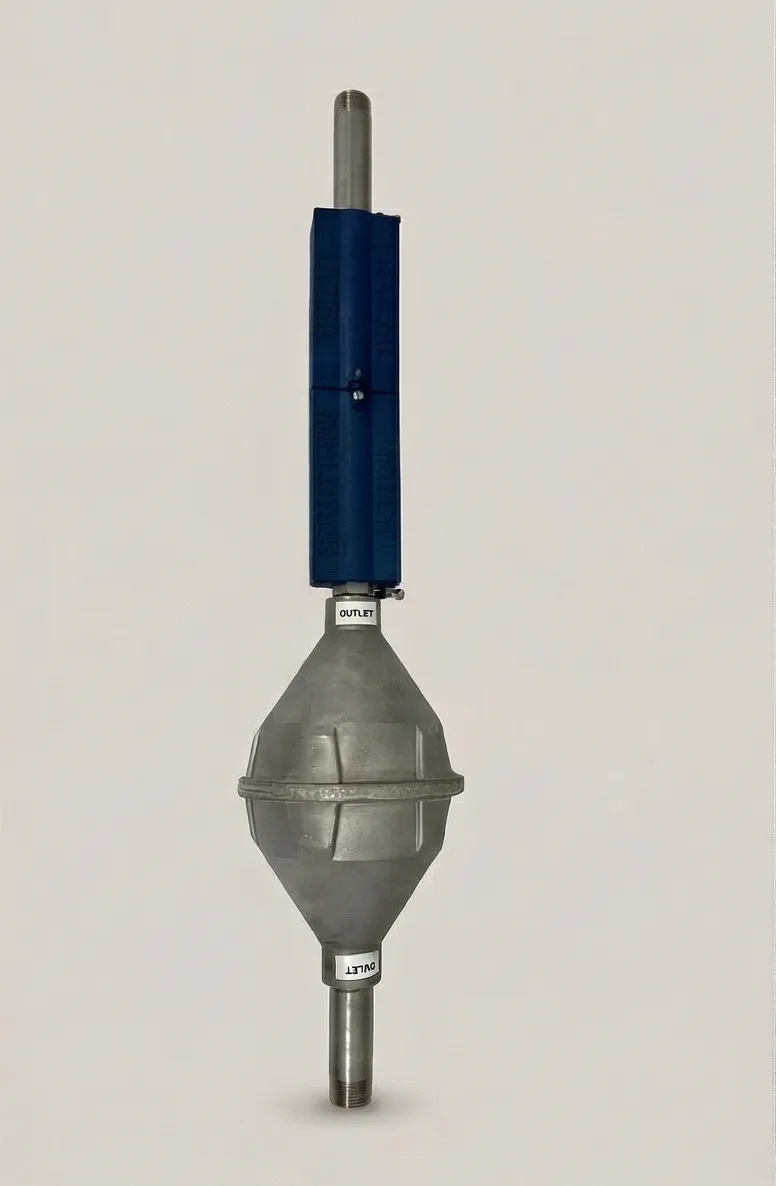

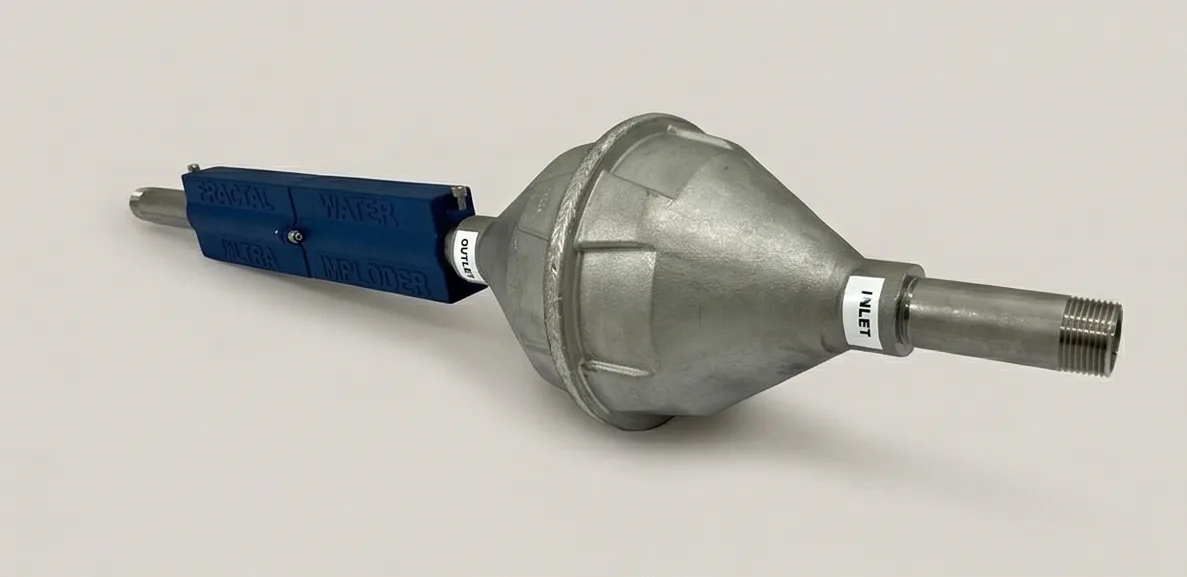

Water flow direction matters. Water must enter the vortex nozzle end (large diameter) and exit the magnetic array end (pipe). The nozzle end is marked on the unit.
Fitting Guide by Pipe Type
The Ultra Imploder uses 1″ NPT connections on both ends. Here are the recommended fittings for each pipe material:
Copper pipe (1″): SharkBite 1″ push-to-connect coupling or Viega ProPress 1″ press × NPT adapter. Do not use a torch near the magnetic sleeves.
PEX pipe (1″): SharkBite 1″ PEX push-to-connect or brass PEX crimp coupling with crimp rings
CPVC pipe (1″): SharkBite 1″ push-to-connect or 1″ CPVC socket × NPT adapter with solvent cement
Galvanized / black iron (1″): 1″ NPT threaded nipple — threads directly, no adapter needed
PVC Schedule 40 (1″): 1″ PVC socket × NPT female adapter with PVC primer and cement
Stainless steel (1″): 1″ NPT stainless steel union for easy service access
Garden hose: 1″ NPT male × GHT female brass adapter
Always apply PTFE (Teflon) tape to male NPT threads. The included mounting bracket must be secured before connecting piping to prevent the 33.94 lb unit from stressing pipe joints.
Ultra Imploder vs Super Imploder
Ultra Imploder
Super Imploder
Connection size
1″ NPT
3/4″ NPT
Construction
316 stainless steel (one-piece nozzle)
Technyl PA 66 GF30 nozzle (heat-welded) + steel array
Both systems deliver the same dual-stage vortex + magnetic treatment. The Ultra Imploder’s all-steel construction and 1″ connections make it the right choice for permanent installations where maximum durability and flow capacity are required. The Super Imploder is ideal for 3/4″ lines and applications where lighter weight and repositioning flexibility are priorities.
Boost with a ReCharger
The Ultra Imploder treats your main 1″ water line. For 3/4″ branch lines running to distant fixtures, appliances, or irrigation zones, add a ReCharger downstream to reinforce the magnetic treatment at the point of use. The Ultra Imploder provides vortex structuring + primary magnetic conditioning on the main line, and the ReCharger extends the magnetic effect through branch runs — ensuring full-strength treatment arrives at every endpoint.
Residential: Ultra Imploder on the 1″ main + ReCharger on 3/4″ branch to water heater, ice machine, or garden spigot
Commercial: Ultra Imploder on the building main + ReChargers on individual equipment feeds (dishwashers, ice machines, cooling tower makeup)
Agriculture: Ultra Imploder at the pump + ReChargers on distant 3/4″ irrigation zones or greenhouse branches
In one 98-day Pak choi trial run by Gerry and Sal Collins in Toronto, New South Wales, average plant mass was 35.6% higher with one Super Imploder and 40.8% higher with two in series than with untreated town water. This was a small independent trial, not a peer-reviewed study. Results vary.
Improved seed germination — faster and more uniform germination
Macadamia orchard study — improved physiology and phenological characteristics documented
How long does the Ultra Imploder last? Built from 316 stainless steel with an expected lifespan of 30+ years. No moving parts, no filters, nothing to replace.
Can I install it myself? Yes. Locate your incoming 1″ water main, shut off water, remove a section of pipe, and install the Ultra Imploder inline. The included pivoting bracket secures the unit. Most homeowners complete installation in under an hour using SharkBite push-to-connect fittings.
Does it require electricity? No. Completely passive — water pressure alone drives the vortex and magnetic treatment.
Which direction does water flow? Water enters the vortex nozzle end (large diameter) and exits the magnetic array end. The vortex structuring happens first, then the magnetic treatment.
What about water hammer? The all-steel construction handles water hammer transients that would concern polymer-based systems. No special precautions needed beyond standard plumbing practice.
Need help choosing the right system? Call us toll-free at 1 (888) 897-6968 and we’ll recommend the best configuration for your application.
Fractal Water systems treat water inside the pipe. They are not medical devices, and Fractal Water makes no health or therapeutic claims. For questions about drinking water and health, consult a physician or your local water authority.
Additional Information
Weight
45 lbs
Dimensions
34 × 8 × 8 in
Product Number
FWI1NPT
Connection
1" NPT (both ends)
Construction
316 stainless steel — one-piece integrated vortex nozzle and magnetic array
Overall Length
32.3 in (821 mm)
Vortex Nozzle Diameter
7.0 in (178 mm)
Total Weight
33.94 lbs (15.4 kg)
Main Weldment
316 stainless steel imploder weldment — 23 lbs
Stainless Steel Pipe
1" NPT x 18" (flow section) + 1" NPT x 4" (nipple)
Magnets
8x Neodymium N52, 13mm x 25mm x 74mm (north poles facing)
Magnetic Sleeves
2x magnetic recharger sleeves — 2.74 lbs each
Magnetic Housing
Heavy gauge steel, Zylan-coated (corrosion resistant)
Mounting
Included pivoting support bracket with SS socket head screws
Pressure Rating
300+ PSI — all-steel construction handles any residential, commercial, or industrial pressure
Flow Rate
1" unrestricted — no internal restriction at nozzle
Electricity Required
None
Maintenance Required
None — no filters, no salt, no consumables
Patent Status
U.S. Patent Pending
Warranty
10-year limited warranty
Expected Lifespan
30+ years
Salt-free Water Softener for Home & Garden
Soften water without the use of chemicals and salts The Ultra Imploder prevents and reverses mineral scale buildup in plumbing. As a result you can expect an increase in water flow and pressure. You can also reduce your use of detergents and cleaning chemicals by half, extend the life of your water heater and other appliances and increase their effectiveness. The Ultra Imploder allows your to reduce water and energy consumption.
The Ultra Imploder installs easily in the home. Simply locate your incoming water main. Remove a section, and install the Ultra Imploder in its place.
Home Benefits
Softens water without using salts and zero maintenance or electricity required
Reduces and reverses scale buildup in pipe and appliances
Improve evaporative coolers & swimming pool maintenance
Perfect for coffee machines and larger appliances
Requires less detergent and chemicals with softer water
Reduce residue in showers, toilets and sinks
More Vibrant house plants and cut flowers
Extends the lifespan of appliances
Increase water pressure
Zero maintenance
No slimy feel
Garden Benefits
Better quality more nutrient dense home-grown produce
Reduces fertilizer and pesticides use
Increases turf uniformity
Balances soil pH
The Fractal Water Ultra Imploder was designed to be installed directly on your incoming water line.
