Description
Magnetic Water Conditioning — Compact, Powerful, Zero Maintenance

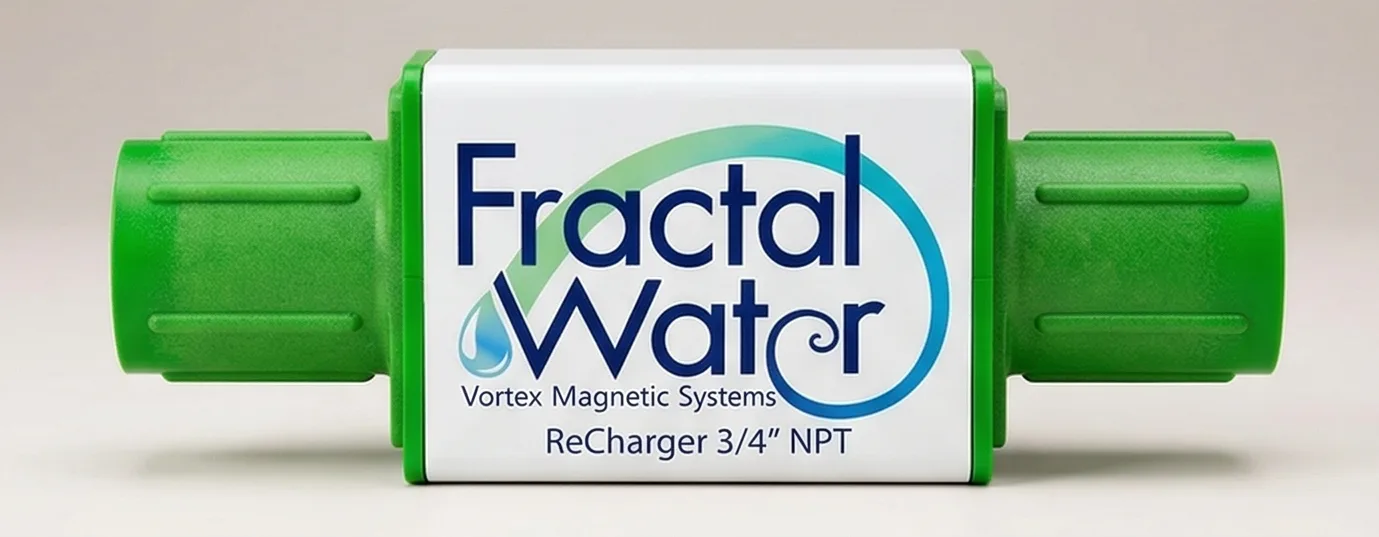

The Fractal Water ReCharger is a pure magnetic water conditioning device designed for inline installation on any 3/4″ water line. Featuring two high-powered N35 neodymium magnets in opposed-pole configuration within a compact Technyl housing and steel magnetic circuit, the ReCharger delivers the magnetic treatment stage of our technology as a standalone unit — ideal for downstream boosting, point-of-use protection, and standalone magnetic conditioning.
How It Works
Water flows through the ReCharger’s dual neodymium magnetic array, generating a strong magnetic field across the entire flow path. The two N35 neodymium magnets (10mm x 25mm x 74mm each) are installed with north poles facing each other, creating a concentrated opposing-pole field that maximizes the Lorentz force on dissolved minerals. Calcium carbonate is restructured from hard calcite into soft aragonite. The result is water that resists scale buildup, flows more freely, and delivers minerals in a more bioavailable form.

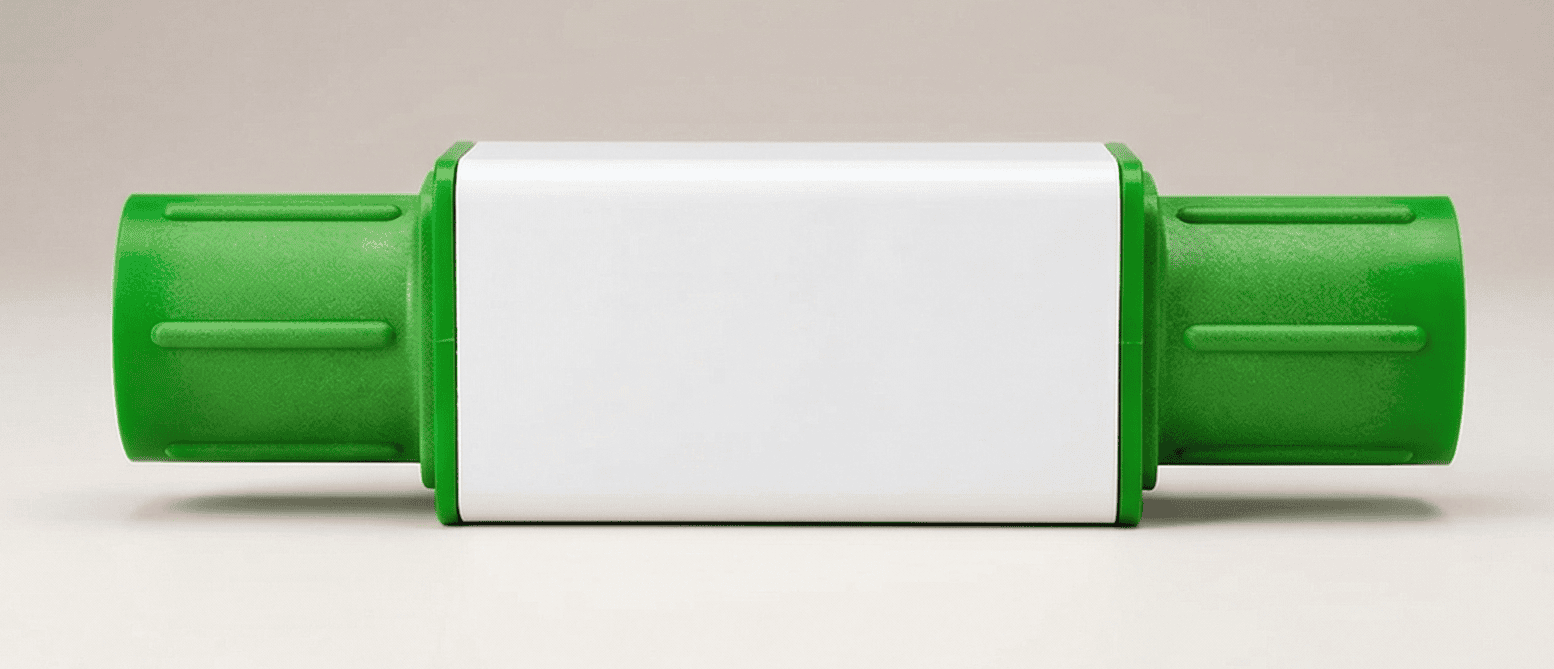

Dimensional Reference
- Overall length: 6.52 in (165.5 mm)
- Magnet array length: 3.37 in (85.5 mm)
- Body width: 2.4 in (61 mm)
- Body height: 1.6 in (41 mm)

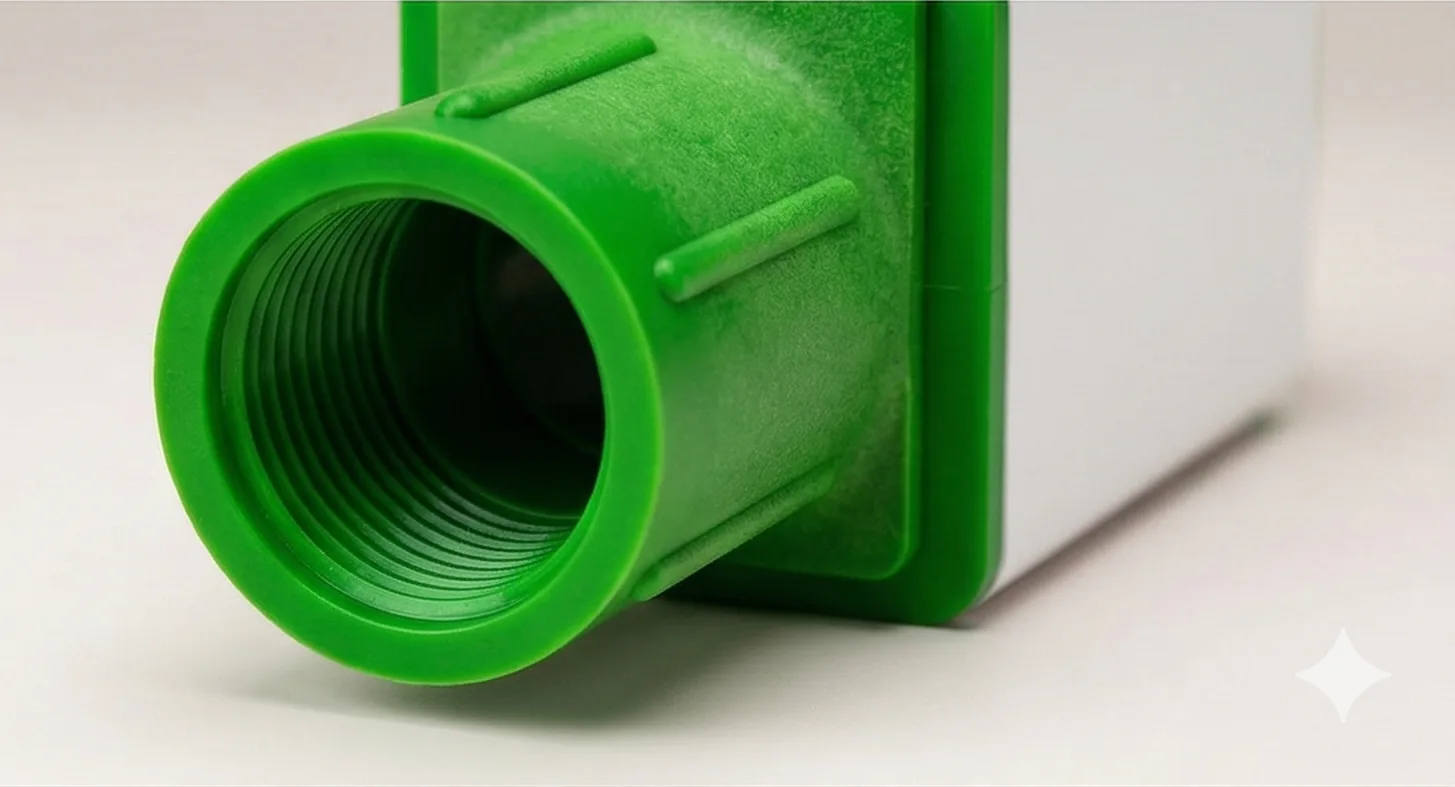

- Connection: 3/4″ NPT female thread (both ends)
- Total weight: 1.51 lbs (0.68 kg)
- Housing: Technyl — 0.21 lbs
- Steel tube: 40x60x3 mm, 76.4 mm L — 0.72 lbs
- Magnets (x2): N35, 10x25x74 mm — 0.58 lbs total
- Retained by: 2x retaining clips
Key Benefits
- Scale prevention and removal — converts calcite to aragonite, preventing mineral scale from adhering to pipes, fixtures, and equipment
- Improved water flow — reduces friction and gradually dissolves existing scale deposits
- Better soil penetration — reduced surface tension for deeper, more uniform soil infiltration
- Increased dissolved oxygen — supports healthier plant growth and soil biology
- Reduced chemical inputs — improved solubility means fertilizers and treatments dissolve more completely
- Extended equipment life — protects pumps, valves, emitters, and appliances from scale damage
- Zero maintenance — no filters, no salt, no electricity, no consumables, no moving parts
- Compact and lightweight — only 1.51 lbs, installs in seconds on any 3/4″ NPT connection
Installation by Application
The ReCharger threads inline on any 3/4″ NPT water line. Apply 3-4 wraps of PTFE (Teflon) tape to the male threads before connecting. Can be installed in any orientation. Allow 6.52″ (166 mm) of clearance along the pipe run.
- Water heater protection: Install on the cold water inlet to the water heater. Prevents scale buildup on heating elements. Parts: ReCharger + 3/4″ NPT nipple + PTFE tape.
- Ice machine / refrigerator: Install on the 3/4″ supply line feeding the appliance. Use a 3/4″ to 1/4″ compression adapter if the appliance line is smaller. Parts: ReCharger + 3/4″F-to-1/4″ compression adapter + PTFE tape.
- Dishwasher / washing machine: Install on the hot or cold supply line behind the appliance. Parts: ReCharger + PTFE tape + standard 3/4″ hose fittings.
- Garden hose: Install between the spigot and hose. Use a 3/4″ NPT-to-garden-hose adapter. Parts: ReCharger + 3/4″ NPT male-to-GHT female adapter (x2) + PTFE tape.
- Home pool or spa: Install on the return line after the pump, before the heater or chlorinator. Parts: ReCharger + 3/4″ NPT unions or couplings + PTFE tape.
- Drip irrigation head: Install at the irrigation manifold inlet to condition all downstream emitters. Prevents calcium clogging in drip lines. Parts: ReCharger + 3/4″ NPT couplings + PTFE tape.
- Greenhouse supply line: Install on the main supply feeding greenhouse benches or misting systems. Parts: ReCharger + PTFE tape.
- Fertigation line: Install upstream of the fertilizer injector. Improved solubility reduces fertilizer usage 10-50%. Parts: ReCharger + PTFE tape.
- Seed treatment tank: Install on the recirculation loop of a seed soaking tank. Parts: ReCharger + 3/4″ barb fittings + hose clamps.
- Well water supply: Install on the 3/4″ outlet of the pressure tank to treat all downstream water. Parts: ReCharger + 3/4″ NPT nipple + PTFE tape.
- HVAC condensate line: Install on the condensate return to reduce scale in cooling coils and drain pans. Parts: ReCharger + 3/4″ NPT unions + PTFE tape.
- Commercial ice machine: Install on the 3/4″ water supply to the ice machine. Reduces scale on evaporator plates and improves ice clarity. Parts: ReCharger + PTFE tape.
- Commercial dishwasher: Install on the hot water supply line to the commercial dishwasher. Parts: ReCharger + 3/4″ NPT couplings + PTFE tape.
- Cooling tower makeup: Install on the 3/4″ makeup water line. For larger lines, use multiple ReChargers in parallel or upgrade to the Ultra Imploder. Parts: ReCharger + PTFE tape.
- Sprinkler zone valve: Install on individual zone supply lines for targeted treatment. Parts: ReCharger + 3/4″ NPT nipples + PTFE tape.
- Hose bib / spigot: Install between the wall spigot and hose for portable landscape watering. Parts: ReCharger + NPT-to-GHT adapters + PTFE tape.
- Shower supply: Install on the 3/4″ supply line to the shower valve for softer, magnetically conditioned shower water. Parts: ReCharger + 3/4″ NPT nipples + PTFE tape.
- Drinking water line: Install on the cold water supply feeding a drinking water tap or under-sink filter. Parts: ReCharger + 3/4″F-to-3/8″ compression adapter + PTFE tape.
Downstream Boosting with Imploder Systems
For maximum effect, install a ReCharger downstream of a Super Imploder or Ultra Imploder to extend the magnetic treatment through longer pipe runs. The Imploder provides the vortex structuring stage, and the ReCharger reinforces the magnetic conditioning at the point of use — delivering the strongest possible treatment at the fixture or emitter.
Need help choosing the right setup? Call us toll-free at 1 (888) 897-6968 and we’ll recommend the best configuration for your application.
Installation Guidelines
The ReCharger’s Technyl housing is lightweight (1.51 lbs) and compact, but proper installation practices ensure long-term reliability:
- Support the unit independently. Do not allow the ReCharger to hang unsupported between pipe runs. Secure the pipe on each side with hangers or straps within 6 inches of the NPT connections.
- Use two wrenches for threading. Hold the ReCharger body with one wrench while turning the fitting with the other. This prevents torsional stress on the housing.
- Do not over-torque. Thread hand-tight plus 1-2 turns with a wrench. The Technyl housing is strong but can crack under excessive torque — let PTFE tape provide the seal, not brute force.
- Protect from impact. The steel magnetic tube adds rigidity, but the Technyl end connections should be protected from direct impact during and after installation.
- Any orientation works. Horizontal, vertical, or angled — the ReCharger operates in any position. Vertical is lowest stress on the housing.
- Temperature limits. Technyl PA 66 GF30 is rated to 110°C (230°F) continuous service. Suitable for hot water lines but do not install on steam lines.
Frequently Asked Questions
How long does the ReCharger last?
The neodymium magnets retain their strength for decades, and the Technyl housing is rated for 20+ years in continuous water contact. Expected system lifespan: 30+ years with zero maintenance.
Can I use the ReCharger by itself?
Yes. The ReCharger delivers standalone magnetic water conditioning. It converts calcite to aragonite, prevents scale, and improves water flow on any 3/4″ water line without needing a vortex nozzle or Imploder system.
Can I install it myself?
Yes. Thread it inline on any 3/4″ NPT connection with PTFE tape. Most installations take under 10 minutes. No special tools required — SharkBite push-to-connect fittings make it even easier on copper or PEX pipe.
Does it require electricity?
No. The neodymium magnets are permanent — no power, no batteries, no consumables.
What is the difference between the ReCharger and the Super Imploder?
The ReCharger provides magnetic conditioning only. The Super Imploder provides dual-stage treatment (vortex structuring + magnetic conditioning). For maximum effect, use both — the Super Imploder on the main line and a ReCharger at the point of use.
How many ReChargers do I need?
One per point of use. If your main line is treated by an Ultra Imploder or Super Imploder, add one ReCharger per branch line that runs more than 20 feet to the fixture or appliance.
Does it work on hot water?
Yes. Technyl PA 66 GF30 is rated to 110°C (230°F) continuous service — suitable for hot water lines, water heaters, and dishwasher feeds.
